LUMINODE 12

Luminex

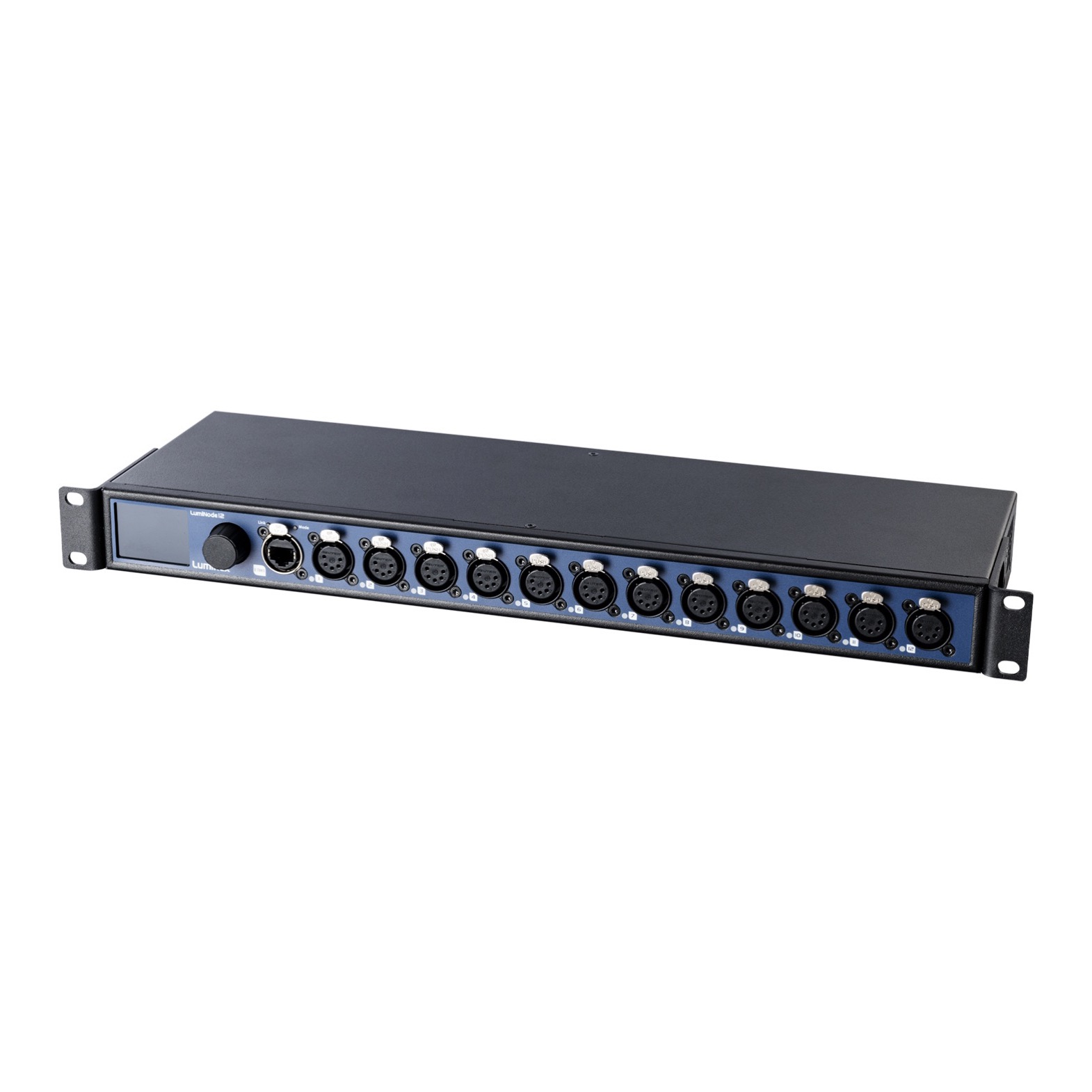

LUMINODE 12

- LUMINODE 12는 시장에서 가장 높은 밀도의 DMX / RDM포트를 제공하는 이상적인 19인치 렉 장치입니다.
- 처리 엔진 16개 및 DMX 포트 12개

Back to list Contact Us
  • TECHNICAL DETAILS
    1. Full 19” high density rack unit
    2. 12 x DMX/RDM 5-pin connector, fully isolated
    3. 1 x RGB LED per DMX/RDM port for activity indication
    4. 2 x EtherCon network port @ 1Gbps with integrated switch
    5. Link/Speed LED indication per Ethernet port
    6. RGB Mode LED indication per Ethernet port
    7. Color display and control jog for fast configuration
    8. Contact closure as trigger
    9. PoE powered (IEEE 802.3af)
  2. Internal universal power supply with Neutrik PowerCon True1
  3. Robust steel enclosure with 2 rack ears
  • CONNECTIVITY
DMX: 12x shielded & gold plated Neutrik 5 pin XLR (female)
Network: 2x shielded Neutrik Ethercon connector
Contact closure: 1x terminal block
Power: 1x Neutrik PowerCon true one input & output
Mounting: Rack mount
  • DMX FEATURES
Supported protocols: DMX512 (1986 & 1990)

  DMX512-A

  RDM ANSI E1.20
DMX Port direction: Input or output (configurable)
DMX Port isolation: Optic and galvanic isolation per port
DMX Timing: Framerate: 10/40fps

  Break: 176-352 µs
  • ETHERNET FEATURES
Supported Protcols: Art-Net I, Art-Net II, Art-Net III, Art-Net IV

  sACN (ANSI E1.31)

  RTTrPL (BlackTrax)
Port Speed: 10/100/1000 Mbps
Port sensing: Auto-negotiation, MDI/MDIX
  • ADDITIONAL FEATURES
Processing Engine: Yes (16)
Merging: Yes (HTP, LTP, Xfade, Backup, Switch)
Softpatch: Yes
Master / Limit: Yes
Trigger System: Yes
ReRoute function: Yes
Profile Manager: Yes
Snapshot: Yes
Monitoring Software: Yes
  • STATUS REPORT
Graphic color Display & Jog: 12x shielded & gold plated Neutrik 5 pin XLR (female)
Ethernet Port Connection: Link and Activity LED

  RGB Mode LED
DMX port: RGB LED indication for DMX / RDM
  • POWER INPUT
Power Input: 100-240VAC

  50-60Hz

  PoE (802.3af )
Power Consumption: Maximum 20W
Fuse: 1A 250V Slow Blow
  • MANAGEMENT
Configuration: Through the built-in web server

  Through the front-end display & jog

  Through documented web API
  • ENVIRONMENTAL
Operating Temperature: 0 to +50°C
Storage Temperature: -10 to +70°C
Humidity (non condensing): 5 to 95% RH
