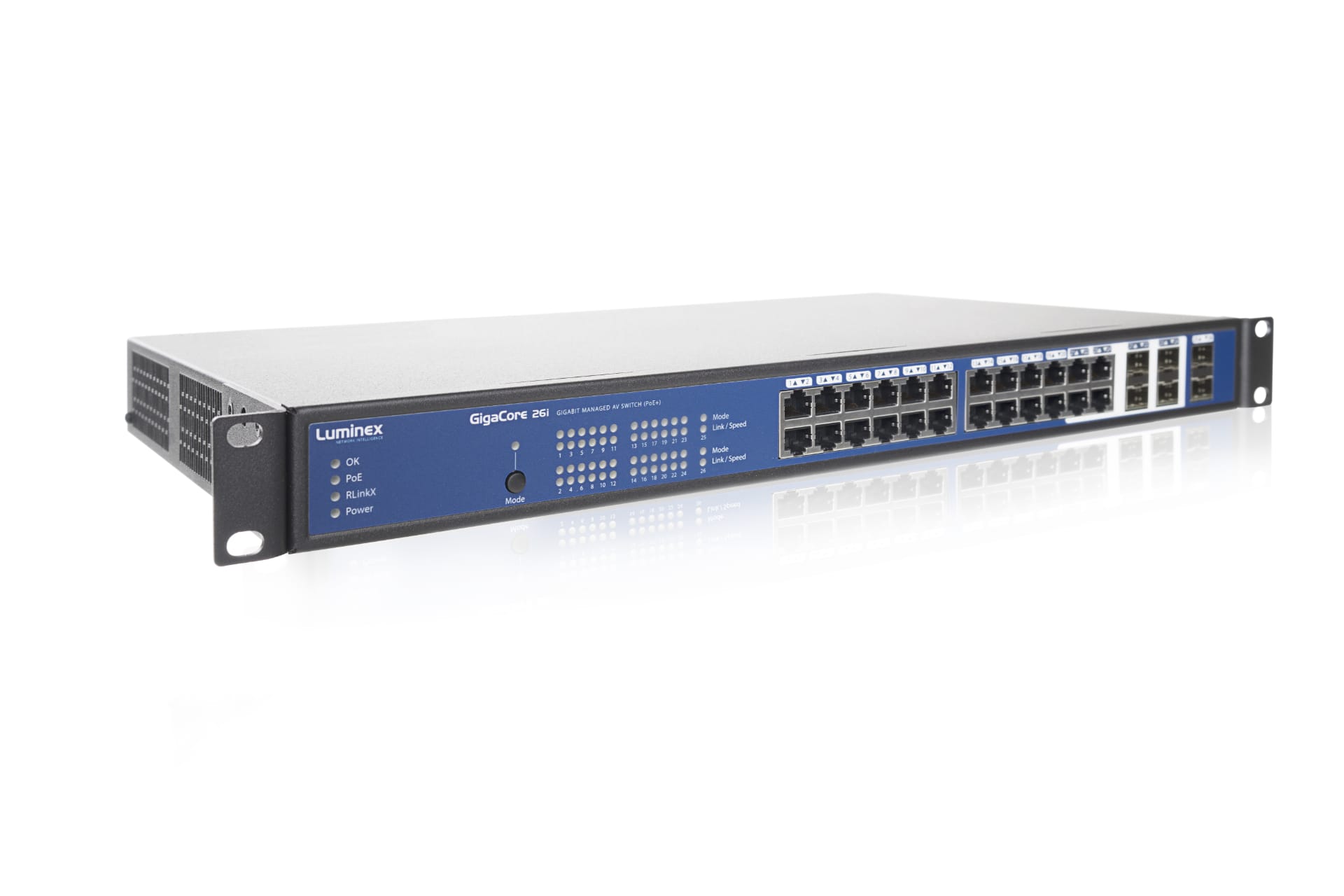

GIGACORE 26i

Luminex

GIGACORE 26i

GigaCore 26i는 포트 밀도가 중요한 경우 친화적인 솔루션을 제공하는 기가비트 이더넷 스위치입니다.

이 장치는 GigaCore 이더넷 스위치 범위의 모든 고급기능과 함께 완전한 AV 설치 지향 패키지로 제공됩니다.

이 유닛은 전면패널에 26개의 기가비트 포트를 제공합니다.

스위치의 각 포트에는 PoE, 중복 및 그룹 구성원과 같은 포트의 다른 특성을 나타내는 색상 모드 리드 표시가 있습니다.

Back to list Contact Us
  • Key Features
Most suitable applications: Fixed installations
RLinkX (Link redundancy): Yes
Groups (VLAN segmentation): Yes
MultiLinkX (Link aggregation): Yes
Profile manager: Yes
Memory: 4Mb
MAC address table:
Address learning / Aging: Self learning, Auto aging
Switching throughput: 52Gbps
IGMP support: Yes (V1/V2/V3)
IGMP snooping: Yes, enabled by default
Port sensing: Auto negotiation
Auto crossover: MDI / MDIX
Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
  • Connectivity
Ethernet connectivity: 24 x RJ45 connectors (incl. 4x dual media on ports 21-24)
Fiber connectivity: 6 x SFP cages (incl. 4x dual media on ports 21-24)
Ethernet port speed: 1Gbps
Serial: 1 x serial RJ45 console port
  • Power
Power connectivity: ∙ 1 x IEC inlet

  ∙ 1 x redundant power input on Molex Mini-Fit Junior

    14 pin connector
Power input: 100-240VAC, 50-60Hz
Power consumption: Maximum 30W (maximum 430W with PoE Supply Unit)
Fuse: None
Backup power input: 12VDC / 2,5A
Backup PoE power input: -54VDC / 6,5A
PoE supply: Optional on front ports only (up to 370W)
  • Protocols
Supported protocols: Avnu AVB/MILAN, Dante©, RAVENNA/AES67©, Ethersound©,

  Q-LAN, REAC©, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX),

  IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af)

  (optional), PoE+ (optional), IEEE 1588 PTP V2
Sound protocol compliance: Yes (low jitter)
Ethernet compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control,

  IEEE 802.3ab Gigabit Ethernet
  • Configuration
Display and jog: None
Configuration: Through the built-in web server
Status LEDs: ∙ Global status LEDs: Device, power, PoE power, RLinkX and mode

  ∙ PoE, MultiLinkX, RLinkX, groups

     link/activity and port speed

  ∙ Dark mode available
Colored RGB LEDs: Yes
  • Physical
Mounting: Rack
Enclosure: Robust metal housing
Dimensions (W x D x H): 482 x 270,3 x 44 mm (19″ x 10,6″ x 1,73″)
Weight: 4 kg
Packaging: 545 x 420 x 80 mm (21,5″ x 16,5″ x 3,15″)
Environment: ∙ Operating temperature : 0 to +50 °C (non-PoE version),

     0 to +40 °C (PoE version)

  ∙ Storage temperature : -10 to +70 °C

  ∙ Humidity (non condensing) : 5 to 95% RH
Certificates/Approvals: cSGSus Mark, CE, CB certificate, RoHS

Standards: IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55022, EN 55024

  • Physical
Product codes: LU 01 00052 (GigaCore 26i)

  LU 01 00052-POE (GigaCore 26i with PoE supply)
