GigaCore 16Xt

Luminex

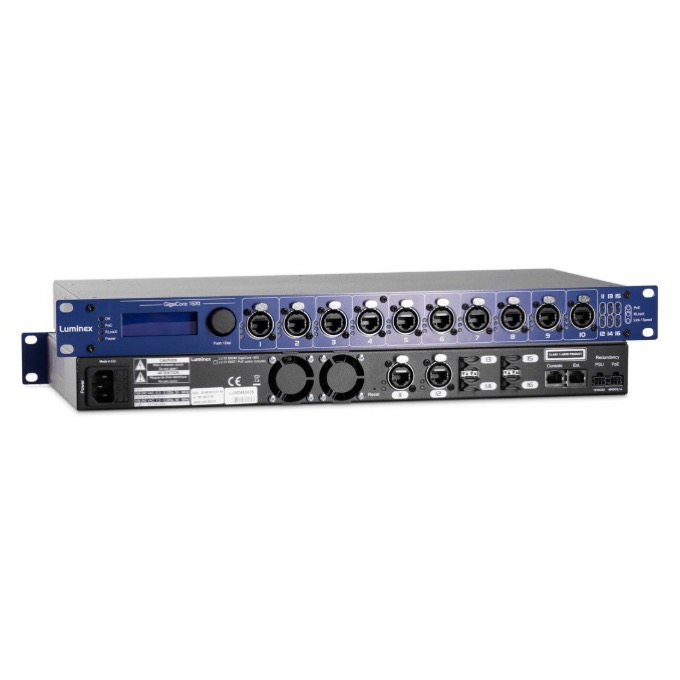

GigaCore 16Xt

GigaCore 16Xt는 전문 AV 솔루션용으로 설계된 사전 구성된 이더넷 스위치로, 투어 및 라이브 이벤트에 이상적입니다.

Back to list Contact Us
  • Key Features
Most suitable applications: Touring and live events
RLinkX (Link redundancy): Yes
Groups (VLAN segmentation): Yes
MultiLinkX (Link aggregation): Yes
Profile manager: Yes
Memory: 4Mb
MAC address table:
Address learning / Aging: Self learning, Auto aging
Switching throughput: 32Gbps
IGMP support: Yes (V1/V2/V3)
IGMP snooping: Yes, enabled by default
Port sensing: Auto negotiation
Auto crossover: MDI / MDIX
Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
  • Connectivity
Ethernet connectivity: 12 x Shielded Neutrik Ethercon connectors
Fiber connectivity: 4 x SFP cages
Ethernet port speed: 1Gbps
Serial: 1 x serial RJ45 console port
  • Power
Power connectivity: ∙ 1 x IEC inlet with fuse holder

  ∙ 1 x redundant power input on Molex Micro-Fit 6 pin connector

  ∙ 1 x redundant PoE input on Molex Micro-Fit 6 pin connector
Power input: 100-240VAC, 50-60Hz
Power consumptionMaximum 30W (maximum 180W with PoE Supply Unit)
Fuse: 3.15A 250V Slow Blow
Backup power input: 15VDC / 2A
Backup PoE power input: 48VDC / 3.4A
PoE supply: Optional on front ports only (up to 160W)
  • Protocols
Supported protocols: Avnu AVB/MILAN, Dante©, RAVENNA/AES67©, Ethersound©,

  Q-LAN, REAC©, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX),

  IEEE 802.1p CoS (Class of Service), DiffServ (DSCP),

  PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2
Sound protocol compliance: Yes (low jitter)
Ethernet compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control,

 IEEE 802.3ab Gigabit Ethernet
  • Configuration
Display and jog: Yes
Configuration: Through the built-in web server or with the front end display menu
Status LEDs : ∙ Global status LEDs: Device, power, PoE power, RLinkX

    ∙ Port status LEDs: PoE, RLinkX, link/activity and port speed
Colored RGB LEDs: No
  • Physical
Mounting: Rack
Enclosure: Robust metal housing
Dimensions (W x D x H): 482 x 204,3 x 44 mm (19″ x 8.04″ x 1.73″)
Weight: 3 kg
Packaging: 545 x 335 x 80 mm (21,5″ x 13,2″ x 3,15″)
Environment: ∙ Operating temperature: 0 to +50 °C

  ∙ Storage temperature: -10 to +70 °C

  ∙ Humidity (non condensing): 5 to 95% RH
Certificates/Approvals: CE, RoHS
Standards: EN 60950-1, EN 55022, EN 55024
  • Physical
Product codes: ∙ LU 01 00048 (GigaCore 16Xt)

  ∙ LU 01 00048-POE (GigaCore 16Xt with PoE supply)
