GigaCore 16RFO

Luminex

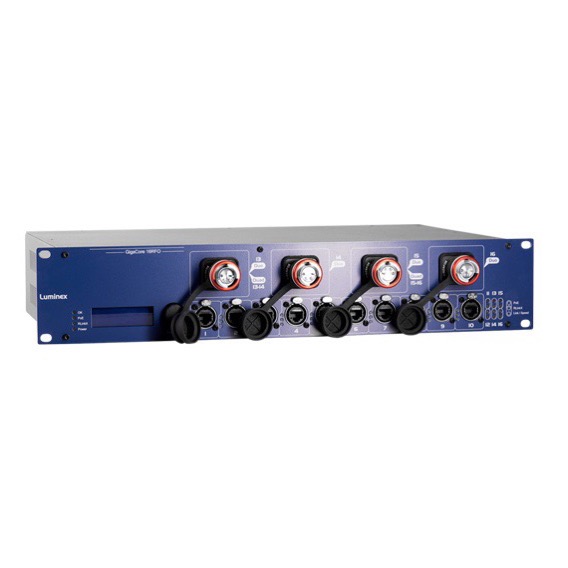

GigaCore 16RFO

GigaCore 16RFO는 프로페셔널 AV 솔루션을 위해 사전 구성된 이더넷 스위치로 투어 및 라이브 이벤트에 적합합니다.

Back to list Contact Us
  • Key Features
Most suitable applications: Touring and live events
RLinkX (Link redundancy): Yes
Groups (VLAN segmentation): Yes
MultiLinkX (Link aggregation): Yes
Profile manager: Yes
Memory: 4Mb
MAC address table:
Address learning / Aging: Self learning, Auto aging
Switching throughput: 32Gbps
IGMP support: Yes (V1/V2/V3)
IGMP snooping: Yes, enabled by default
Port sensing: Auto negotiation
Auto crossover: MDI / MDIX
Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
  • Connectivity
Ethernet connectivity: 24 x RJ45 connectors (incl. 4x dual media on ports 21-24)
Fiber connectivity: 6 x SFP cages (incl. 4x dual media on ports 21-24)
Ethernet port speed: 1Gbps
Serial: 1 x serial RJ45 console port
  • Power
Power connectivity: 2x Neutrik powerCON TRUE1 In/Out
Power input: 100-240VAC, 50-60Hz
Power consumption: Maximum 30W (maximum 180W with PoE Supply Unit)
Fuse: 3.15A 250V Slow Blow
Backup power input: 100 – 240VAC
Backup PoE power input: 100 – 240VAC (same connector as backup power input)
PoE supply: Optional on front ports only (up to 160W)
  • Protocols
Supported protocols: Avnu AVB/MILAN, Dante©, RAVENNA/AES67©, Ethersound©,

  Q-LAN, REAC©, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX),

  IEEE 802.1p CoS (Class of Service), DiffServ (DSCP),

  PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2
Sound protocol compliance: Yes (low jitter)
Ethernet compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control,

  IEEE 802.3ab Gigabit Ethernet
  • Configuration
Display and jog: Yes
Configuration: Through the built-in web server or with the front end display menu
Status LEDs: ∙ Global status LEDs : Device, power, PoE power, RLinkX

  ∙ Port status LEDs: PoE, RLinkX, link/activity and port speed
Colored RGB LEDs: No
  • Physical
Mounting: Rack
Enclosure: Robust metal housing
Dimensions (W x D x H): 482 x 294,15 x 88,45 mm (19″ x 11.5″ x 3,5″)
Weight: 6,1 kg
Packaging: 545 x 420 x 140 mm (21,5″ x 16,5″ x 5,5″)
Environment: ∙ Operating temperature: 0 to +50 °C

  ∙ Storage temperature: -10 to +70 °C

  ∙ Humidity (non condensing): 5 to 95% RH
Certificates/Approvals: CE, RoHS
Standards: EN 60950-1, EN 55022, EN 55024
  • Physical
Product codes: ∙ LU 01 00056-02 (GigaCore 16RFO Neutrik DUO MMF)

  ∙ LU 01 00056-03 (GigaCore 16RFO Neutrik DUO MMF + PoE)

  ∙ LU 01 00056-04 (GigaCore 16RFO Neutrik QUAD MMF)

  ∙ LU 01 00056-05 (GigaCore 16RFO Neutrik QUAD MMF + PoE)

  ∙ LU 01 00056-06 (GigaCore 16RFO Neutrik DUO SMF)

  ∙ LU 01 00056-07 (GigaCore 16RFO Neutrik DUO SMF + PoE)

  ∙ LU 01 00056-08 (GigaCore 16RFO Neutrik QUAD SMF)

  ∙ LU 01 00056-09 (GigaCore 16RFO Neutrik QUAD SMF + PoE)

  ∙ LU 01 00056-10 (GigaCore 16RFO Fibreco Junior 2 ch MMF)

  ∙ LU 01 00056-11 (GigaCore 16RFO Fibreco Junior 2 ch MMF + PoE)

  ∙ LU 01 00056-12 (GigaCore 16RFO Fibreco Junior 4 ch MMF)

  ∙ LU 01 00056-13 GigaCore 16RFO (FibreCo Junior 4 ch MMF + PoE)

  ∙ LU 01 00056-14 GigaCore 16RFO (FibreCo Junior 2 ch SMF)

  ∙ LU 01 00056-15 GigaCore 16RFO (FibreCo Junior 2 ch SMF + PoE)

  ∙ LU 01 00056-16 GigaCore 16RFO (FibreCo Junior 4 ch SMF)

  ∙ LU 01 00056-17 GigaCore 16RFO (FibreCo Junior 4 ch SMF + PoE)

  ∙ LU 01 00056-18 GigaCore 16RFO (Fiberfox 2 ch MMF)

  ∙ LU 01 00056-19 GigaCore 16RFO (Fiberfox 2 ch MMF + PoE)

  ∙ LU 01 00056-20 GigaCore 16RFO (Fiberfox 4 ch MMF)

  ∙ LU 01 00056-21 GigaCore 16RFO (Fiberfox 4 ch MMF + PoE)

  ∙ LU 01 00056-24 GigaCore 16RFO (Fiberfox 4 ch SMF)

  ∙ LU 01 00056-25 GigaCore 16RFO (Fiberfox 4 ch SMF + PoE)
