Ethernet-DinMX4

Luminex

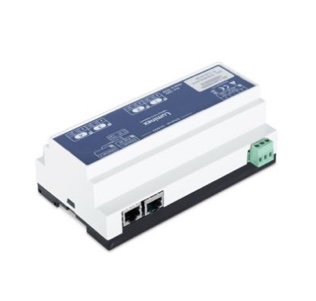

Ethernet-DinMX4

Ethernet-DinMX4는 Ethernet-DMX4 MkII 변환기의 DIN 레일 에디션입니다. 이 장치는 간편한 네트워크 연결을 위해 4 개의 DMX 포트와 2 개의 이더넷 포트를 제공합니다. 4 개의 DMX 연결은 터미널 블록 (옵션으로 RJ45)을 통해 사용 가능합니다. Art-Net, sACN 및 RDM 프로토콜을 사용할 수 있습니다. 이러한 모든 기능으로 인해이 제품은 건축 및 고정 설치에 이상적입니다.

Back to list Contact Us
  • Key Features
Merging engine: Yes
Softpatch: Yes
Trigger system: Yes
ReRoute: Yes
Profile manager: Yes
Snapshot: Yes
Monitoring software: LumiNet Monitor V2 (free)
  • Ethernet/DMX features
DMX port direction: Input or output (configurable)
DMX port isolation: Optical and galvanic isolation per port
DMX Port termination/biasing: Yes
DMX timing: Framerate: 10-40fps – break: 176-352µs
Ethernet port speed: 100Mbps
Port sensing: Auto-negociation, MDI / MDIX
  • Connectivity
DMX connectivity: 4x 3 pole terminal blocks or RJ45 connectors
Ethernet connectivity: 2x RJ45 connectors
Rear connectivity: Not applicable
  • Power
Power connectivity: 1x 3 pole terminal block
Power input: 24 VDC
Power consumption: Maximum 10W
Fuse: None
PoE powered: Yes (class 0 rated)
  • Protocols
DMX protocols: DMX512 (1986 & 1990), DMX512-A, RDM ANSI E1.20
Ethernet protocols: Art-Net™ (1-4), sACN ANSI E1.31, RTTrPL (BlackTraX)
  • Configuration
Display and jog: No
Configuration: Through the built-in web server
Status LEDs: Power LED, Ethernet Port LED (link and activity),


DMX Port LED (DMX/RDM activity)

  • Physical
Mounting: DIN Rail
Enclosure: Standard DIN rail ABS enclosure (9 units wide)
Dimensions (W x D x H): 156,3 x 86 x 57,8 mm (6,15″ x 3,39″ x 2,28″)
Weight: 0,28 kg
Packaging: 178 x 115 x 68mm (7″ x 4,5″ x 2,7″)
Environment: ∙ Operating temperature: 0 tot +60°C

  ∙ Storage temperature: -10 tot +70°C

  ∙ Humidity (non condensing): 5 to 95% RH
Certificates/Approvals: cSGSus Mark, CE, CB certificate


Standards: IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55022, EN 55024

  • Product codes
Product codes: ∙ LU 01 00042-TB (Ethernet-DinMX4 on Terminal Blocks)

  ∙ LU 01 00042-RJ45 (Ethernet-DinMX4 on RJ45)
