Ethernet_DMX8 Truss

Luminex

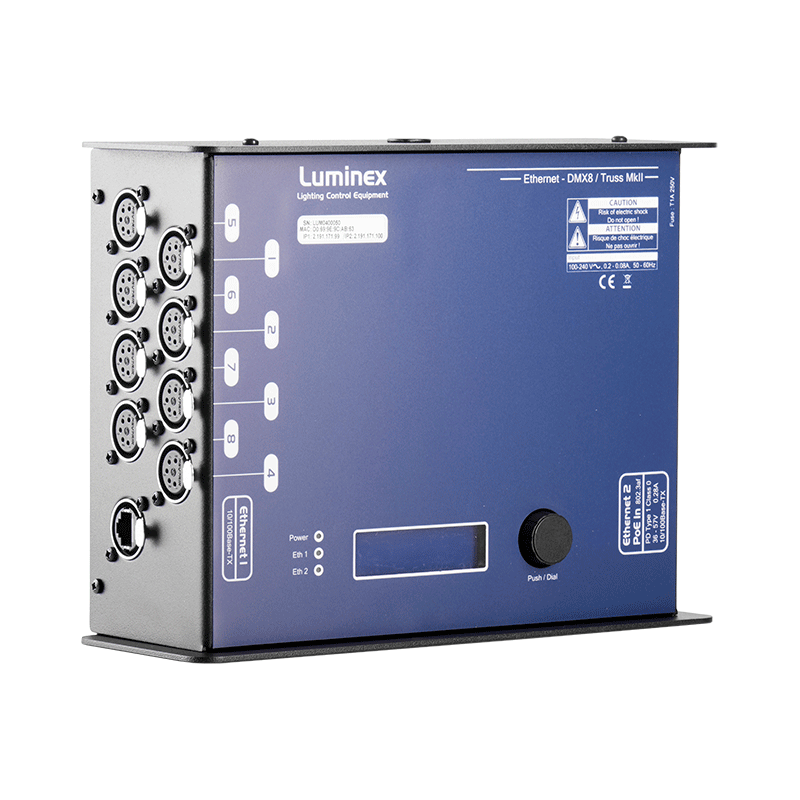

Ethernet_DMX8 Truss

Ethernet DMX8 Truss는 Ethernet DMX8의 트러스 장착 버전입니다.

견고한 Enclosure가 장착 된, 이 장치는 간편한 트러스 장착 응용 프로그램을 위한 2개의 M10 Inserts와 빠른 구성을 위한 디스플레이를 제공합니다.

Back to list Contact Us
  • Specification

＊ Key features

Merging engineYes
SoftpatchYes
Trigger systemYes
ReRouteYes
Profile managerYes
SnapshotYes
Monitoring softwareLumiNet Monitor V2 (free)



＊ Ethernet/DMX features

DMX port directionInput or output (configurable)
DMX port isolationOptical and galvanic isolation per port
DMX port termination/biasingYes
DMX timing10-40fps – break: 176-352µs
Ethernet port speed100Mbps
Port sensingAuto-negociation, MDI / MDIX



＊ Connectivity

DMX connectivity8x shielded & gold plated Neutrik 5 pin XLR (female)
Ethernet connectivity2x shielded Neutrik Ethercon connector
Rear connectivityNot applicable



＊POWER

Power connectivity1x Neutrik powerCON inlet
Power input100-240VAC / 50-60Hz
Power consumptionMaximum 15W



＊ Protocols

DMX protocolsDMX512 (1986 & 1990), DMX512-A, RDM ANSI E1.20
Ethernet protocolsArt-Net™ (1-4), sACN ANSI E1.31, RTTrPL (BlackTraX)



＊ Configuration

Display and jogYes
ConfigurationThrough the built-in web server or with the front end display menu
Status LEDsPower LED, Ethernet Port LED (link and activity)



＊ Physical

Dimensions (W x D x H)235 x 179.5 x 87 mm
Weight2.9 kg
Operating temperature0 tot +60°C
Storage temperature-10 tot +70°C
