Ethernet_DMX8

Luminex

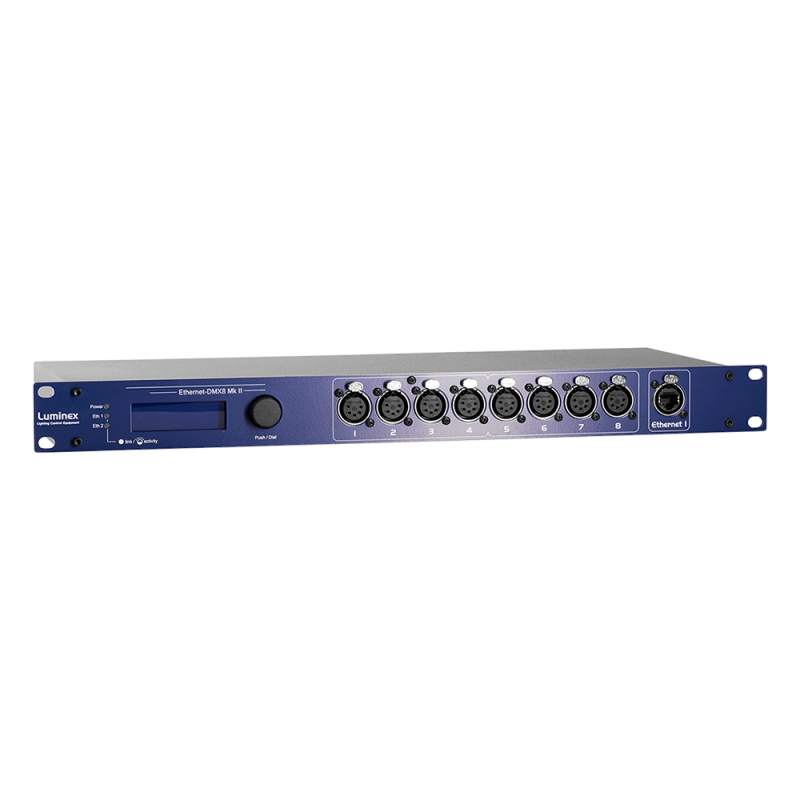

Ethernet_DMX8

Back to list Contact Us
  •   Specification

＊Key features

Merging engineYes
SoftpatchYes
Trigger systemYes
ReRouteYes
Profile managerYes
SnapshotYes
Monitoring softwareLumiNet Monitor V2 (free)



＊Ethernet/DMX features

DMX port directionInput or output (configurable)
DMX port isolationOptical and galvanic isolation per port
DMX port termination/biasingYes
DMX timing10-40fps – break: 176-352µs
Ethernet port speed100Mbps
Port sensingAuto-negociation, MDI / MDIX



＊Connectivity

DMX connectivity8x shielded & gold plated Neutrik 5 pin XLR (female)
Ethernet connectivity2x shielded Neutrik Ethercon connector
Rear connectivity8x punched holes for optional input connectors



＊POWER

Power connectivity1x IEC inlet with fuse holder
Power input100-240VAC / 50-60Hz
Power consumptionMaximum 15W



＊Protocols

DMX protocolsDMX512 (1986 & 1990), DMX512-A, RDM ANSI E1.20
Ethernet protocolsArt-Net™ (1-4), sACN ANSI E1.31, RTTrPL (BlackTraX)



＊Configuration

Display and jogYes
ConfigurationThrough the built-in web server or with the front end display menu
Status LEDsPower LED, Ethernet Port LED (link and activity)



＊Physical

Dimensions (W x D x H)482 x 183 x 44 mm
Weight2.4 kg
Operating temperature0 tot +60°C
Storage temperature-10 tot +70°C
