Ethernet_DMX4 Truss

Luminex

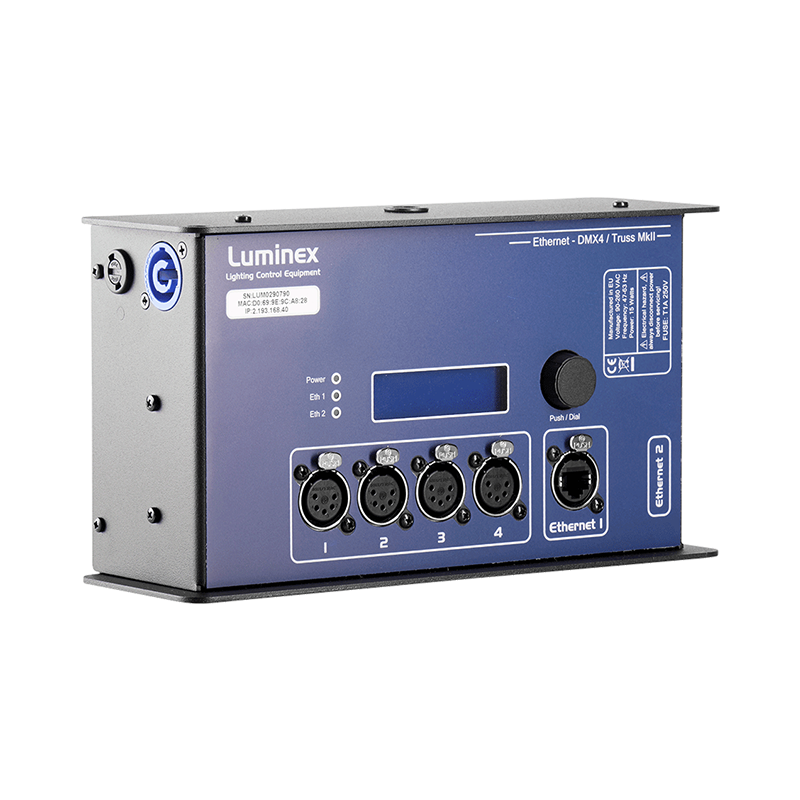

Ethernet_DMX4 Truss

Ethernet DMX4 Truss는 Ethernet DMX4의 트러스 장착 버전입니다.

트러스 마운팅용 M10 Inserts 1개가 장착되어 있으며 벽 또는 트러스 장착 애플리케이션 용으로 사용 할 수 있는 견고한 Enclosure가 장착되어 있습니다.

이 장치는 쉬운 네트워크 연결을 위해 2개의 Ethercon 커넥터를 제공합니다.

Back to list Contact Us
  • Specification

＊ Key features

Merging engineYes
SoftpatchYes
Trigger systemYes
ReRouteYes
Profile managerYes
SnapshotYes
Monitoring softwareLumiNet Monitor V2 (free)



＊ Ethernet/DMX features

DMX port directionInput or output (configurable)
DMX port isolationOptical and galvanic isolation per port
DMX port termination/biasingYes
DMX timing10-40fps – break: 176-352µs
Ethernet port speed100Mbps
Port sensingMDI / MDIX



＊ Connectivity

DMX connectivity4x shielded & gold plated Neutrik 5 pin XLR (female)
Ethernet connectivity2x shielded Neutrik Ethercon connector
Rear connectivityNot applicable



＊ POWER

Power connectivity1x Neutrik powerCON inlet
Power input100-240VAC / 50-60Hz
Power consumptionMaximum 15W



＊ Protocols

DMX protocolsDMX512 (1986 & 1990), DMX512-A, RDM ANSI E1.20
Ethernet protocolsArt-Net™ (1-4), sACN ANSI E1.31, RTTrPL (BlackTraX)



＊ Configuration

Display and jogYes
ConfigurationThrough the built-in web server or with the front end display menu
Status LEDsPower LED, Ethernet Port LED (link and activity)



＊ Physical

Dimensions (W x D x H)260 x 164 x 100 mm
Weight2.3 kg
Operating temperature0 tot +60°C
Storage temperature-10 tot +70°C
