Ethernet_DMX4

Luminex

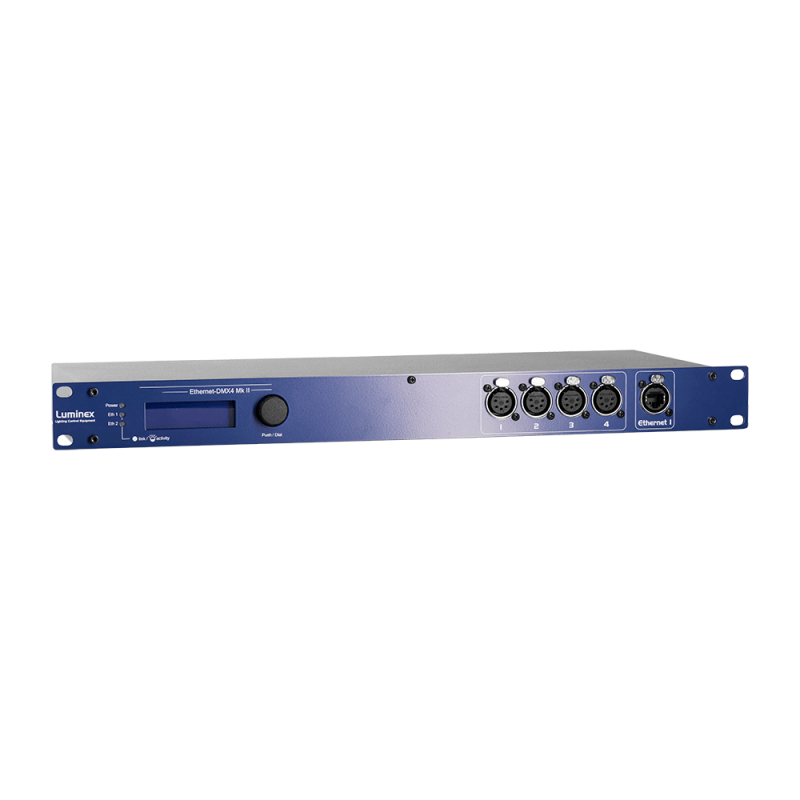

Ethernet_DMX4

입력 또는 출력으로 사용할 수 있는 4개의 차폐 DMX커넥터를 제공 합니다.

쉬운 네트워크 연결을 위한 2개의 이더넥 포트 (전면 및 후면)와 더 나은 설정 시각화를 위한 그래픽 디스플레이도 제공합니다.

Back to list Contact Us
  •  Specification

＊ Key features

Merging engineYes
SoftpatchYes
Trigger systemYes
ReRouteYes
Profile managerYes
SnapshotYes
Monitoring softwareLumiNet Monitor V2 (free)



＊ Ethernet/DMX features

DMX port directionInput or output (configurable)
DMX port isolationOptical and galvanic isolation per port
DMX port termination/biasingYes
DMX timing10-40fps – break: 176-352µs
Ethernet port speed100Mbps
Port sensingAuto-negociation, MDI / MDIX



＊ Connectivity

DMX connectivity4x shielded & gold plated Neutrik 5 pin XLR (female)
Ethernet connectivity2x shielded Neutrik Ethercon connector
Rear connectivity4x punched holes for optional input connectors



＊ POWER

Power connectivity1x IEC inlet with fuse holder
Power input100-240VAC / 50-60Hz
Power consumptionMaximum 15W



＊ Protocols

DMX protocolsDMX512 (1986 & 1990), DMX512-A, RDM ANSI E1.20
Ethernet protocolsArt-Net™ (1-4), sACN ANSI E1.31, RTTrPL (BlackTraX)



＊ Configuration

Display and jogYes
ConfigurationThrough the built-in web server or with the front end display menu
Status LEDsPower LED, Ethernet Port LED (link and activity)



＊ Physical

Dimensions (W x D x H)482 x 183 x 44 mm
Weight2.4 kg
Operating temperature0 tot +60°C
Storage temperature-10 tot +70°C
